Sinexcel · Air cooling · 20-Fuß-Container (modular)

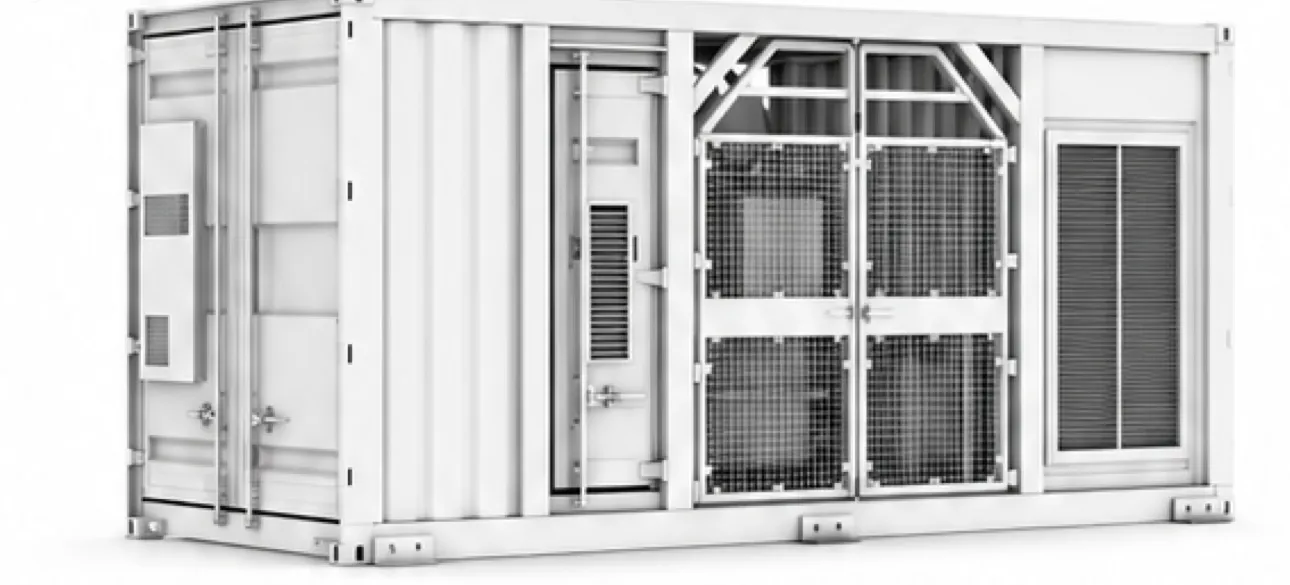

Sinexcel 1075–1725K Converter and Transformer System
Scalable containerised system with integrated inverter, booster and transformer: N × 215 kW PCS modules (N = 1–8) with robust medium-voltage integration.
Technical data
| System | |
|---|---|
| Cooling | Air cooling |
| Form factor | 20-Fuß-Container (modular) |
| Grid & power | |
| On/off-grid switching | Yes |
| Direct PV input | No |
Technical data per the manufacturer's datasheet; binding values depend on configuration and project.
Scalable containerised system solution with integrated inverter, booster and transformer. Designed for flexible storage and grid projects with a compact footprint, high efficiency and robust medium-voltage integration — capacity grows modularly with the number of PCS modules (N × 215 kW, N = 1–8). The multi-branch DC design prevents battery looping currents; LVRT and HVRT, four-quadrant active and reactive power control and automated peak shaving with VSG, PQ and VF modes are built in. Island operation and black start are possible according to the datasheet.
Frequently asked questions
How does the Sinexcel 1075–1725K system scale?
Modularly via N × 215 kW PCS modules (N = 1–8) in a compact 20-foot container design — power grows with the number of modules.
What grid connection is provided?
10 kV or 34.5 kV AC voltage (customer-specific) at 50/60 Hz; transformer efficiency is 98.5 % according to the datasheet.
What does the multi-branch DC design deliver?
It prevents battery looping currents. 1, 2, 4 or 8 DC buses are available, with a DC voltage range of 1,000–1,500 V and a 300 A DC fuse per module.
Which grid functions are integrated?
LVRT and HVRT, four-quadrant active and reactive power control and automated peak shaving with VSG, PQ and VF modes; communication runs over RS485, CAN and TCP/IP.
